Comica CVM-WM100 Camera-Mount Wireless Omni Lavalier Microphone System
Lihat gambar lebih detail
Specs
System
| Wireless Transmission | Analog UHF |
| Number of RF Channels | 48 |
| Included Transmitters | 1 x Bodypack with Microphone |
| Diversity | Non-Diversity |
| RF Frequency Band | 520 to 534.1 MHz |
| RF Bandwidth | Up to 14.1 MHz |
| Max Operating Range | 328.1' / 100 m (Line of Sight) 196.9' / 60 m (with Obstruction) |
| Max Systems per Setup | 5 |
| Latency | |
| Encryption | None |
| Modulation | FM |
Receiver
| Form Factor | Camera-Mount |
| Mounting Options | Belt Clip, Shoe-Mount (with Included Hardware) |
| Antenna | 1 x 1/4 Wave External, Fixed (Top-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output (Lockable) |
| Frequency Response | 20 Hz to 18 kHz |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Not Included) |
| Display & Indicators | 1 x Backlit LCD (AF Level, Battery Status, Channel, Frequency, Level, Power, RF Level, Sync) 1 x LED (Sync) |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 2.6 x 4.4 x 1" / 65 x 111.5 x 25.3 mm (without Antennas) |
Transmitter
| Form Factor | Bodypack with Microphone |
| RF Output Power | 15 / 30 mW |
| Audio I/O | 2 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
| Pad | None |
| Muting | Off/On Switch |
| Signal Processing | High-Pass Filter: |
| Sync Method | Manual |
| Antenna | 1 x 1/4 Wave External, Fixed |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Not Included) |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x Backlit LCD (Audio Level, Battery Status, Channel, Mute, Power, Signal Strength) 1 x LED (Sync) |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 2.6 x 4.4 x 1" / 65 x 111.5 x 25.3 mm (without Antennas) |
Microphone
| Form Factor | Lavalier |
| Sound Field | Mono |
| Operating Principle | Pressure Operated |
| Capsule | Electret Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 30 Hz to 20 kHz |
| SNR | 65 dB |
| Maximum SPL | 100 dB SPL |
| Sensitivity | -35 dB |
| Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
| Cable Length | 3.94' / 1.2 m |
Packaging Info
| Package Weight | 1.55 lb |
| Box Dimensions (LxWxH) | 11.4 x 8.9 x 3.1" |
Designed for mobile journalists, videographers, and vloggers, the Comica Audio CVM-WM100 camera-mount wireless lavalier microphone system is a complete solution for recording dialogue, interviews, and speech to your video rig. Record a mic- or line-level source from up to 328' away, and run audio to your camera, DSLR, or camcorder while monitoring through headphones in real time.

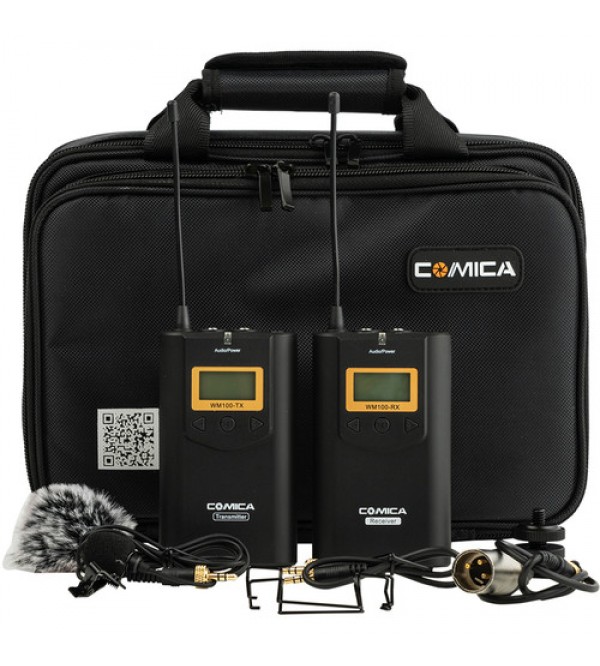

With an omnidirectional lavalier microphone, a bodypack transmitter, a single-channel receiver, multiple cables, and mounting accessories, the CVM-WM100 has everything you need for seamless audio integration into your video production setup. Its 48 channels allow interference-free signal quality and easy expansion into multi-system configurations.Camera-Mount Receiver
- The CVM-WM100 features a single-channel receiver with multiple mounting options. Affix the receiver directly to a tripod, attach it to your subject via its belt clip, or use the supplied shoe-mount accessory to mount it on your camera, DSLR, or camcorder.
- The high-resolution backlit LCD screen shows vital information such as battery status, audio level, channel selection, and more. Configuring the receiver is easy thanks to its simple three-button setup.
- The CVM-WM100 includes two audio cables—one 3.5mm and one 3.5mm to XLR—for connecting the receiver's volume-adjustable 3.5mm line output to the input of your camera, DSLR, or camcorder. A separate 3.5mm port is provided for real-time monitoring through headphones.
Bodypack Transmitter with Lavalier Microphone
- The CVM-WM100 includes one bodypack transmitter and a lavalier microphone. The microphone's locking 3.5mm plug screws into place to prevent accidental disconnection.
- By utilizing an omnidirectional polar pattern, the lav mic offers 360° sound pickup, which is more forgiving to your subject's head movements. Fit the supplied windbuster on the lav mic to significantly reduce noise from wind and rustling of clothes.
- The transmitter also has a dedicated 3.5mm line input should you need to do a camera hop; route the output of a mixer or field recorder into the transmitter's line input to wirelessly stream the audio mix to the receiver.
Essential Features
- Operating range up to 328' line-of-sight or up to 196' with obstruction
- Transmitter and receiver each powered via two AA batteries (available separately)
- 48 channels allow up to five simultaneous systems (additional systems available separately)
- Utilizes the UHF FM band from 520.0 to 534.1 MHz
- 16 levels of volume adjustment
- Integrated low-cut filter to reduce rumble and low-frequency buildup
- Seletable high/low transmitting power; use low-power mode to reduce power consumption when working at close range, or switch to high-power mode to improve signal quality when working at greater distances
- Transmitter power button doubles as a mute switch (long press for power, short press for mute)
- Compatible with recording to mobile devices using a 3.5mm TRS to 3.5mm TRRS cable (available separately)
