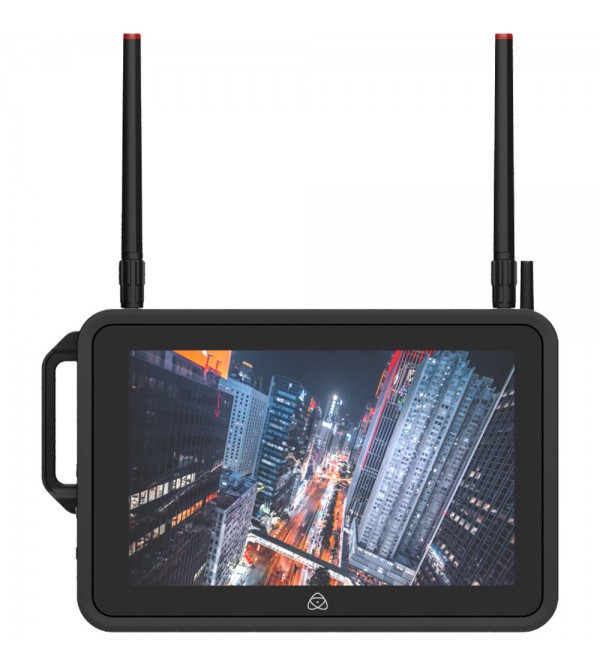

Atomos SHOGUN CONNECT 7" Network-Connected HDR Video Monitor

Atomos SHOGUN CONNECT 7" Network-Connected HDR Video Monitor


>> 7" 1920 x 1200 Touchscreen Display

>> 2000 cd/m² Brightness

>> 2 x 12G-SDI, 2 x HDMI, 1 x USB Type-C

>> Records up to 4K Video

>> Adobe Camera to Cloud Support

>> Wi-Fi 6, Bluetooth LE, Gigabit Ethernet

>>  Dual Recording Capabilities, Streaming

>> Power via DC Input or L-Series Battery

CONNECT Upgrades

>> Features a new, brighter HDR screen and range of built-in interfaces

>> Loop through 12G-SDI input/output for SDI RAW and HDMI support an expansive range of professional cinema, DSLR, and mirrorless cameras

>> ATOMOS AirGlu technology enables direct, long-range communication between devices up to 0.2 miles and wireless timecode lock

Streaming Capabilities

>> Supports livestreaming to Facebook Live, Twitch, and YouTube

>> Built-in Wi-Fi 6, Gigabit Ethernet, Bluetooth LE, and the ability to join cellular hotspots

Camera to Cloud Device

>> Fully integrated camera to cloud device

>> With support of HDMI and SDI equipped cameras, it offers advanced online workflows and remote collaboration between filmmakers

>> Record, monitor, and share your work from one device

Dual Recording

>> Creates matching "hero" Apple ProRes, ProRes RAW, or Avid DHxHR/HD files to a "proxy" HEVC (H.265) file simultaneously

>> Proxy files can be uploaded during capture using ATOMOS transfer technology for immediate availability in the cloud post-recording

Shogun Control

>> Auto HDMI trigger supports Canon, Sony, Atomos Open Standard

>> Camera selectable SDI trigger

>> Serial 2.5mm jack for LANC control and calibration with separately available USB to serial cable

>> Bluetooth LE control via AtomControl App for monitor assist functions

>> Wireless RF AirGlu remote start/stop trigger

Monitor Assist Functions

>> 3D LUT

>> Anamorphic de-squeeze

>> Cine frame guides

>> Display flip

>> False color

>> Focus peaking

>> Frame grab

>> Grid markers

>> Isolate color channel

>> Onion skin overlay

>> RGB parade

>> Safe areas

>> Social frame guides

>> Vectorscope

>> Waveform

>> Zebra

>> Zoom

Warranty -

Write a review

Please login or register to review

Gratis Ongkos Kirim

Dengan syarat dan ketentuan yang berlaku.


Cek Ketersediaan

Mohon hubungi CS kami atau Toko Terdekat, untuk detail ketersediaan stok barang.


  • Product Code: Atomos SHOGUN CONNECT 7" Network-Connected
  • SKU No. : 17ATO0021
  • Availability: In Stock
  • Rp. 16,480,000

Tags: Video, TV Broadcast, video Recorder Digital, Atomos
