Blackmagic Design Mini Converter Optical Fiber 12G

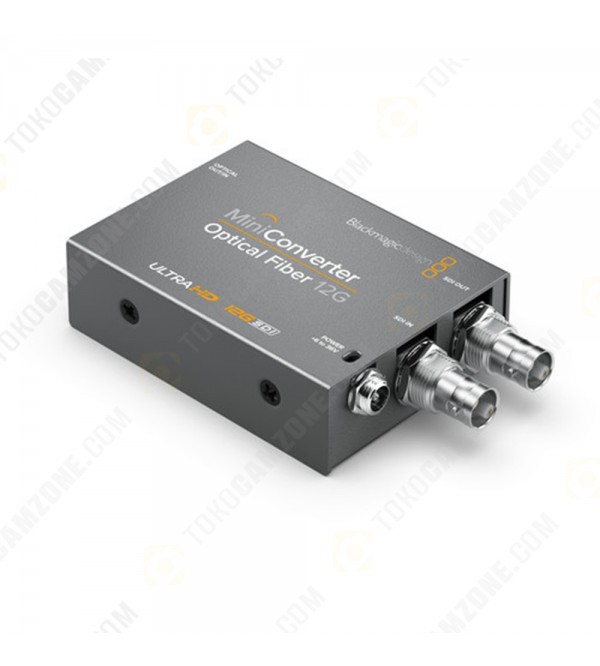

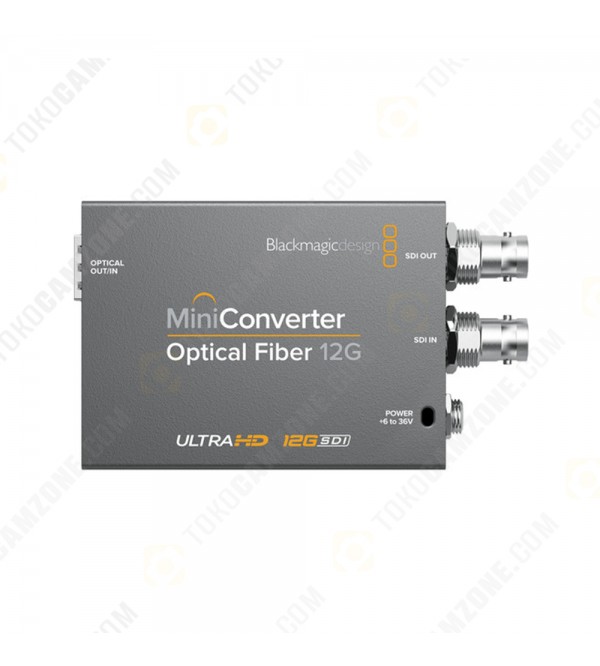

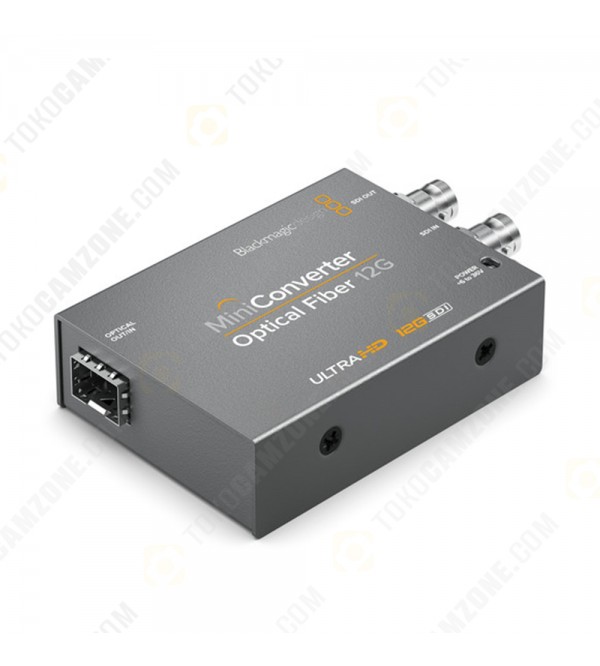

Blackmagic Design Mini Converter Optical Fiber 12G

Product Highlights

  • Convert 12G/HD/SD-SDI to Optical Fiber
  • Multi-Rate, Bidirectional Capability
  • Supports Signals up to DCI 4K
  • Automatic Input Signal Detection
  • 16-Channel Embedded Audio Support
  • Diagrammed Function Switches
  • Update via Converter Utility Software
  • Locking, Universal Power Supply
  • Compact Metal Housing

  • The Blackmagic Design Mini Converter Optical Fiber 12G-SDI offers bidirectional, multi-rate SDI to optical fiber conversion capabilities, with complete independence in each direction, and support for up to DCI 4K signals. The converter has one LC-type optical fiber input/output, one 12G/HD/SD-SDI input, and one 12G/HD/SD-SDI output. With a 10-bit rate, you can take advantage of long fiber runs and compatibility with both studio and field HD-SDI and SD equipment.

  • Features include automatic signal detection and support for up to 16-channel embedded audio. Settings can be easily changed using the diagrammed function switches, or via the OS X/Windows-compatible converter software. This compact converter features a sturdy metal housing, and includes a 12V universal power supply with a locking connection for added security.


  • Features :
  • Bidirectional, multi-rate SDI to optical fiber conversion
  • Supports video signals up to DCI 4K
  • Automatic signal detection
  • Supports up to 16-channel embedded audio
  • Change settings with function switches, or the OS X/Windows-compatible software
  • Universal power supply with locking connector
  • Sturdy, compact metal housing
  • One LC fiber in/out connection, one SDI in, and one SDI out.

  • Specifications :

    Connections
    Video Input12G/HD/SD-SDI: 1 x BNC
    Video Output12G/HD/SD-SDI: 1 x BNC
    Fiber ConnectorIn/Out: 1 x LC
    Optical Fiber Audio Input16-channel embedded
    Optical Fiber Audio Output16-channel embedded
    Standards
    Supported Video Standards4096 x 2160: 25/24/23.98
    3840 x 2160: 30/29.97/25/24/23.98
    2048 x 1080: 25/24/23.98
    2048 x 1080: 25PsF/24PsF/23.98PsF
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    625i: 50
    525i: 59.94
    SDI ComplianceSMPTE ST-2081/425M/424M-B/296M/292M/259M
    SMPTE 297M for fiber
    ITU-R BT.656/.601
    SDI Color Precision4:4:4, 4:2:2
    SDI Color SpaceYUV, RGB
    ASI SupportYes
    Operating System
    Supported Operating SystemsMacOS 10.12 Sierra
    MacOS High Sierra 10.13 or later
    Windows 8.1
    Windows 10
    Power
    Power Consumption2 W
    Operational Voltage Range6-36 VDC
    Physical & Environmental
    Operating Temperature32 to 104°F / 0 to 40°C
    Storage Temperature-4 to 113°F / -20 to 45°C
    Relative Humidity0 to 90%, non-condensing
    Dimensions4.33 x 2.32 x 0.9" / 11 x 5.9 x 2.3 cm
    Weight7.4 oz / 210 g
    Packaging Info
    Package Weight1.05 lb
    Box Dimensions (LxWxH)5.7 x 4.7 x 2.8"





Write a review

Please login or register to review

Cek Ketersediaan

Mohon hubungi sales online support, untuk detail harga dan ketersediaan stok.



Gratis Ongkos Kirim

Dengan syarat dan ketentuan yang berlaku.



  • Product Code: Blackmagic Design Mini Converter Optical Fiber 12G-SDI
  • SKU No. : 33BLACK00152
  • Availability: In Stock
  • Rp. 3,110,000

Tags: Video, TV, Broadcast, Video Converter, Blackmagic Design Mini Converter Optical Fiber 12G-SDI
