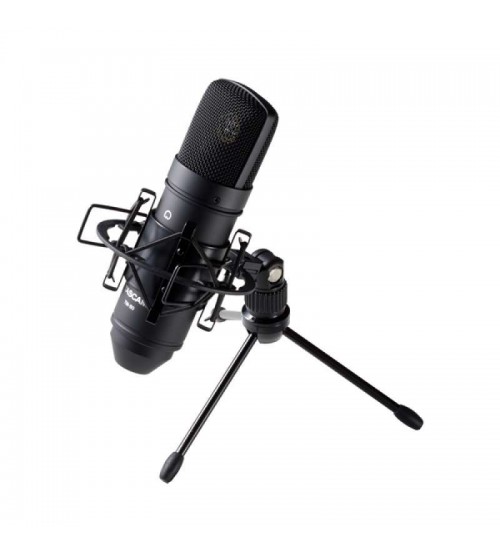

Tascam TM-80 Studio Condenser Microphone
Lihat gambar lebih detail
Listen to a sound example for US-4x4 and Tascam TM-80
music created with a Tascam US-4x4 audio interface and Tascam TM-80 microphones. The track includes acoustic guitar and vocals and has been produced by the Japanese composer Masaku Murata.
He used three TM-80s for the acoustic guitar: two were placed in front of the guitar, one pointing at the center and the other one pointing at the bridge. The third TM-80 was placed farther away for ambience.
Vocals were picked up by a fourth TM-80. For mixing, Murata used Sonar Platinum with its included plugins and ProChannel effects. No additional plugins were used for the mix.
Specification
- 18-mm, pure aluminum diaphragm
- Cardioid polar pattern
- Frequency response: 20 Hz to 20 kHz
- Sensitivity: –38 dB ±2 dB (0 dB = 1 V/Pa at 1 kHz)
- Phantom power required: 9–48 V DC
- Output impedance: 200 Ω ±30 %
(at 1 kHz) - Load impedance: >1 kΩ
- Maximum SPL: 136 dB (at 1 kHz, 1 % THD)
- S/N ratio: 77 dB
- Housing: Die cast zinc
- Dimensions (W × H × D):
48 mm × 165 mm × 48 mm - Weight: 300 g (mic body only)
- Includes: elastic shockmount, mini desk stand, cable (1.8 m XLRM–XLRF)
- 18-mm, pure aluminum diaphragm
- Cardioid polar pattern
- Frequency response: 20 Hz to 20 kHz
- Sensitivity: –38 dB ±2 dB (0 dB = 1 V/Pa at 1 kHz)
- Phantom power required: 9–48 V DC
- Output impedance: 200 Ω ±30 %
(at 1 kHz) - Load impedance: >1 kΩ
- Maximum SPL: 136 dB (at 1 kHz, 1 % THD)
- S/N ratio: 77 dB
- Housing: Die cast zinc
- Dimensions (W × H × D):
48 mm × 165 mm × 48 mm - Weight: 300 g (mic body only)
- Includes: elastic shockmount, mini desk stand, cable (1.8 m XLRM–XLRF)
