SmallHD 702 Touch 7" On-Camera Monitor

SmallHD 702 Touch 7

Product Highlights

  • - 7" Daylight Viewable 1920 x 1200 Display
  • - 1500 cd/m² Brightness, 1000:1 Contrast
  • - Waveform, Custom LUTs, De-Squeeze & More
  • - 3G-SDI & HDMI Inputs/Outputs
  • - Interchangeable Battery Plates
  • - Headphone Jack
  • - 12 Switchable Pages of Favorite Features
  • - Aircraft-Grade Aluminum Unibody

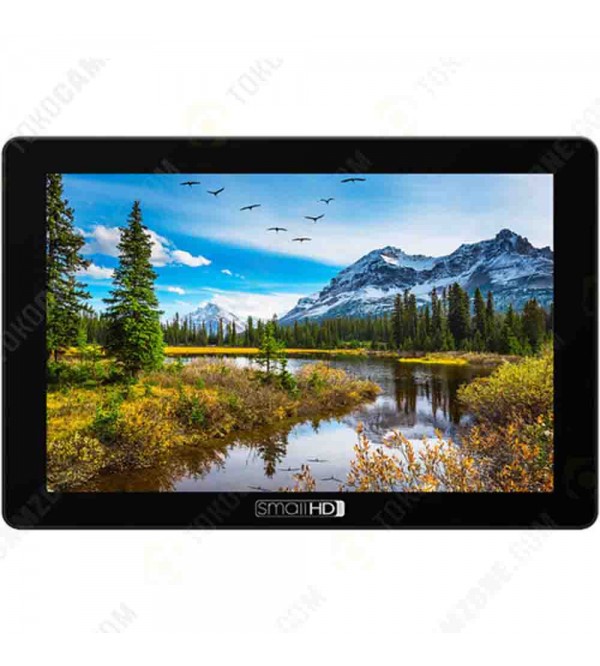

  • The SmallHD 702 Touch 7" On-Camera Monitor features an IPS LCD display panel with a resolution of 1920 x 1200. The IPS touchscreen provides a wide off-axis viewing experience without significant shift in color or contrast. The panel also features a maximum brightness of 1500 cd/m², which makes it more than well suited for use outdoors. The touchscreen capability of the monitor facilitates using the SmallHD OS3 software package that allows you to create looks and save them as pages.

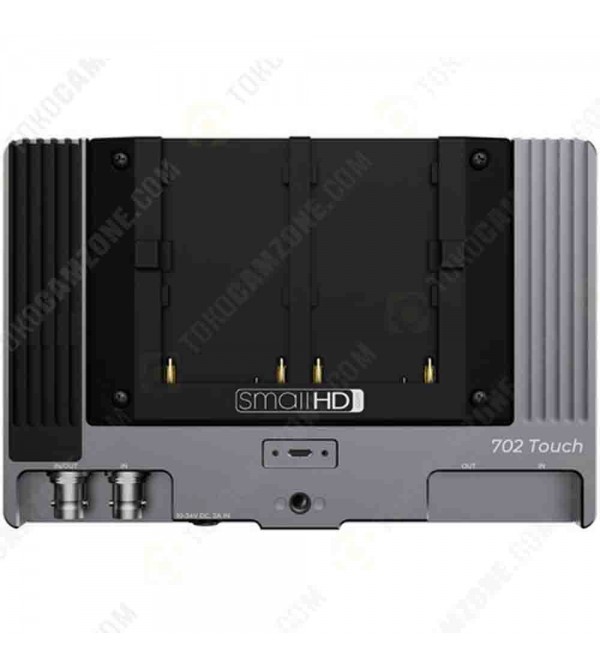

    Interchangeable battery plates allow you to use the battery of your choice. However, the monitor ships with two L-series battery plates. The 702 Touch incorporates 3G-SDI and HDMI inputs and outputs, as well as a headphone jack for monitoring audio. It also has a store of monitoring features including waveform, custom LUT support, anamorphic de-squeeze, and audio meters.

    OS3
    OS3 offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different "pages". Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
    Monitoring Features
    • - Pixel zoom: 2x and 4x with smooth pan via joystick button
    • - Image rotate (manual/automatic)
    • - Image flip (manual/automatic)
    • - Cross conversion- Focus assist (colors)
    • - Frame guides                             - DSLR scale (Canon, Nikon)
    • - Custom scale                              - Anamorphic de-squeeze
    • - Peaking                                 - False color
    • - Waveform                            - RGB parade
    •  -Histogram                            - Custom LUTS
    •  -Horizon indicator                 - Image capture (individual and time-lapse)
    • - LUT downstream                  - LUT import
    • - Image overlay                      - Audio meters
    • Display
      Panel TypeIPS-Type LCD
      Display Size7.0" / 17.8 cm
      Screen Resolution1920 x 1200
      Aspect Ratio16:10
      Viewing AngleHorizontal: 179°
      TouchscreenYes
      Bit Depth / Color Support8-Bit (16.7 Million Colors)
      Pixels Per Inch (ppi)32 ppi
      Image ControlsAnamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Waveform
      I/O
      Video1 x BNC (3G-SDI) Output
      1 x BNC (3G-SDI) Input/Output
      1 x HDMI Type A Output
      1 x HDMI Type A Input
      Embedded AudioHDMI & SDI
      Audio1 x 3.5 mm Headphone Output
      Power1 x 5.5 mm Barrel  (34 VDC) Output
      Other I/O1 x USB 2.0 (Micro-USB) 1 x SD
      Power
      DC Input Power6 to 16.8 VDC
      Battery Type1 x L-Series, V-Mount, or Gold Mount (Interchangeable Mount)
      Power Consumption17 W (Maximum)
      Mounting
      Mounting4 x 1/4"-20 Female
      CertificationsCE, FCC, IC, RoHS, as per Manufacturer
      General
      Material of ConstructionAluminum
      Dimensions (W x H x D)7.09 x 4.67 x 1.29" / 18.01 x 11.86 x 3.28 cm
      Weight18.9 oz / 536 g
      Packaging Info
      Package Weight / Dimensions2.0 lb // 9.4 x 7.0 x 2.1"
Technical
Warranty Non Warranty
