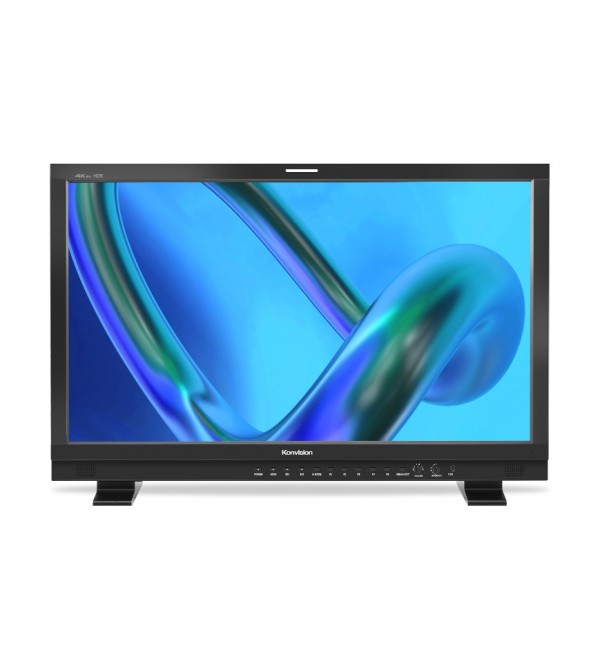

KUM-3120H (1000nits) 32" 8K HDR monitor
KUM-3120H is a 32" 8K HDR monitor.
Equipped with 4x12G-SDI input and 4x12G-SDI loop out,supports upto 8192x4320 60P signal. Support HLG-to SDR monitoring and HDR & SDR side by side comparison, suitable for most demanded 4K and 8K workflows.
Panel
LCD Screen LCD
Display Size 31.5"
Resolution 3840×2160
Aspect Ratio 16 : 9
Viewing Angle 178°(H) / 178°(V)
Color Depth 1.07B
Back Light LED
Brightness 1000 cd/m²
Contrast Ratio 1000:1
INPUT
4 x BNC
12G-SDI 1/2/3/4 signal inputs
(Auto-detected and compatiable to 6G/3G/HD/SD-SDI)
1 x SDI SFP+ SDI SFP+ module optical input
1 × HDMI 2.0(optional)
HDMI 2.0 Signal(optional)
OUTPUT
4 x BNC
12G-SDI 1/2/3/4 signal outputs
(Auto-detected and compatiable to 6G/3G/HD/SD-SDI)
Audio In / Out
SDI Audio In 16 Channels SDI/2 embedded audio
Audio Meter Display Vertical/Horizontal Audio Level Meter Display
Audio Headset Output 3.5mm Headset Jack
Built-in Speaker 2.5W×2
GENERAL
Operating Temperature -10°~ 50°
Input Voltage AC 100-240V 50/60Hz
Power Consumption 140 W
Power-Saving Mode Turn off unimportant key Automatically if no signal input
VESA Installation VESA MIS-D(200X200mm)
Accessory Power Cord /Desktop stand
