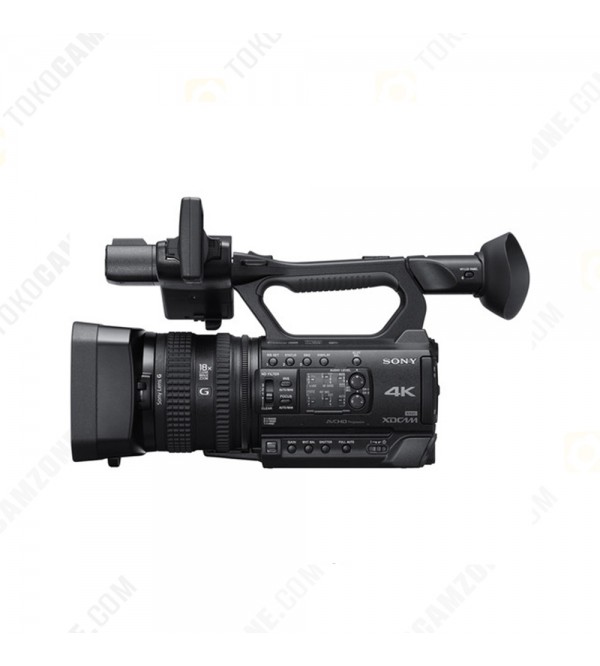

Sony PXW-Z150 Professional 4K Handheld XDCAM Camcorder
· Single 1" Exmor RS CMOS Sensor
· UHD 4K (3840 x 2160) up to 30p
· HD up to 120 fps
· Sony G Lens with 12x Optical Zoom
· 24x Clear Image Zoom, 48x Digital Zoom
· Discrete Manual Focus, Zoom, Iris Rings
· XAVC, AVC/H.264, AVCHD 2.0, MPEG-4
· Slow and Quick Motion Function
· Two SD Memory Card Slots, Wi-Fi
· 2 x 3-Pin XLR Audio Inputs
The PXW-Z150 4K XDCAM Camcorder
from Sony brings high-quality performance, adaptability, and ease of use
to a compact, handheld body that is the same size as the HXR-NX100. Suitable
for corporate video, house of worship, and legal deposition recording. The
camcorder features a single Exmor RS sensor with a UHD 4K (3840 x 2160)
resolution, Sony G lens with 12x optical zoom range, and 24x Clear Image Zoom.
The integrated zoom lens features individual lens control rings for focus,
iris, and zoom, and produces smooth-rounded-out-of-focus highlights. The lens
can be used in either full-auto mode with servo control, or as a completely
manually operated lens.
The camcorder supports storing up to 6 picture profiles and allows you share profiles; the camera also supports Sony's Slow and Quick Motion for shooting HD video at variable frame rates, including 120 fps. Recording to a variety of formats, frame rates, and codecs, the camcorder supports 100 Mb/s XAVC Long GOP recording of 4K UHD video at up to 29.97p, HD up to 59.94p, MPEG HD up to 59.94p, and AVCHD 2.0 up to 59.94p. Your footage is recorded to media via two SD memory card slots. You can choose to record simultaneously to both cards or use the relay mode which switches recording automatically to the second memory card when the first one is full. It features built-in Wi-Fi and NFC connectivity. The PXW-Z150 features two 3-pin XLR audio inputs that support line, mic, and mic + 48V (phantom power) for using external microphones; you can also use the PXW-Z150's built-in microphone to record audio when shooting. The camcorder also includes Night Shot capability for shooting in extremely dim lighting conditions as well as date/time stamp, and timecode functionality.
1" Exmor RS CMOS Sensor
The PXW-Z150 incorporates a 1.0"-type Exmor RS CMOS sensor with approximately 8.3 million effective pixels. The R designation signifies that this is a backside illuminated sensor, and the S designation refers to the buffer design, and that it is able to read the information off the sensor much faster than a non-S designated sensor.
Depth of Field
The 1.0"-type offers more shallow depth of field than 1/2.88"-type or smaller sensors.
Sony G Lens with 12x Optical Zoom, 24x Clear Image Zoom
The PXW-Z150 is supplied with a fixed 12x wide-angle Sony G lens, equivalent to a 29 to 348mm 35mm lens. The 12x optical zoom can be doubled to 24x with Clear Image Zoom, and the Digital Extender function can double this range again, up to 48x zoom.
Frame Rate Flexibility
The camera records UHD 4K video (3840 x 2160p) at 29.97, 25, and 23.98 fps, in XAVC Long GOP in a choice of 100 Mb/s or 60 Mb/s. You can also select to record HD video instead of 4K, which allows you to not only record at standard frame rates up to 59.94p, but also engage Sony's S&Q Motion, for recording HD video at 1, 2, 4, 8, 15, 30, and 60 fps.
Multiple Codec Choice
You can select to record in XAVC Long GOP (4K/1080p), MPEG HD at 4:2:2 or 4:2:0, or AVCHD 2.0 at a variety of data rates.
Three lens rings enable smooth, natural adjustment of focus, zoom, and iris control. The rings are not mechanically linked to the lens movement, but there is a mechanical feel to the rings. However, they are endlessly rotating, which protects your lens elements from pinning, and the faster you rotate the lens ring the more reactive the result. The lens can also be used in full-auto mode or completely manual for maximum creative control.
Built-In ND Filters
The PXW-Z150 is equipped with a ND Filter function, allowing you to choose four conventional mechanical ND filter positions (Clear, 1/4ND, 1/16ND and 1/64ND) for better exposure and depth of field control.
The PXW-Z150 is equipped with two memory card slots, one of
which is for SDHC/SDXC cards only, while the other slot is compatible with
SDHC/SDXC and Memory Stick PRO Duo (Mark 2)/Memory Stick PRO-HG Duo cards.
Two media slots can be used to record in either "SIMUL" or "RELAY" mode. "RELAY" mode automatically switches recording from the first to the second memory card when the first is full, while "SIMUL" mode permits simultaneous recording to two memory cards. You can choose to record the same file to the second slot, creating an instant copy, or record a lower quality proxy for post.
The Multi-Interface Shoe expands your options to use accessories without cables, such as the optional HVL-LBPC Video Light or the UWP-D wireless microphone series.
You can fine-tune the look of movies before shooting by
adjusting up to 99 parameters such as gamma, knee, black level, color model,
color level, color phase, and more. Adjusted parameters can be saved along with
other settings as a profile, and up to six profiles can be stored for later
You can copy the settings from one PXW-Z150 to another PXW-Z150 so that user can shoot with multiple cameras in the same settings. The picture profiles only work with the same model of camera.
Using the camcorder's built-in Wi-Fi capability you can FTP files directly from the camcorder or live stream over Wi-Fi without having to add any additional accessories. You can also use the camcorder's Wi-Fi and NFC connectivity to remotely pair it to your iOS or Android mobile devices running the Content Browser Mobile app, giving you remote control over focus, zoom, iris, white balance, REC start/stop, and more
|Sensor Type||1.0"/ 13.2 mm x 8.8 mm back-illuminated Exmor RS CMOS sensor|
|Memory Card Type||1 x SD/SDHC/SDXC & Memory Stick Duo1 x SD/SDHC/SDXC|
|Battery||Battery pack: 7.2 VDCAC Adapter: 8.4 VDC|
